Ford: EcoBlue Engine is a Diesel Game Changer

Apr 28, 2016

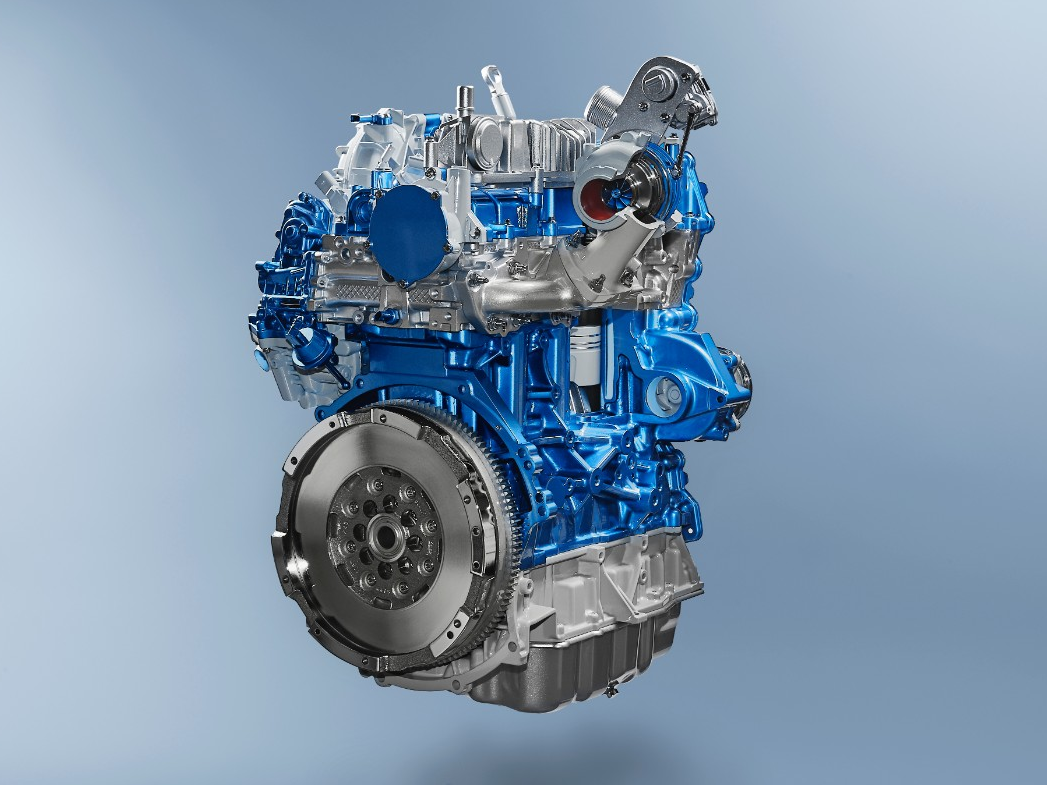

Ford has revealed the first new Ford EcoBlue advanced diesel engine that will offer optimized fuel efficiency and reduced CO2 and NOX emissions for customers, using new technologies and design, according to the company.

Ford’s range of EcoBlue diesel engines will power the company’s future passenger cars and commercial vehicles with power outputs ranging from 100 PS to 240 PS. The four-cylinder 2-liter Ford EcoBlue debuts in the new Transit and Transit Custom commercial vehicles.

Drivability is enhanced with 20 percent more torque at 1,250 rpm, compared with the outgoing equivalent power 2.2-litre TDCi diesel engine, according to Ford. The new engine also delivers passenger car refinement to the commercial segment, reducing radiated noise by 4 decibels at idle.

“Ford’s EcoBoost created a new standard for petrol engines-smaller, more efficient with surprising performance. That same obsession to innovate for the customer is behind our new Ford EcoBlue diesel engine range,” said Jim Farley, chairman and CEO of Ford of Europe. “This new engine lifts fuel efficiency and reduces CO2 by over 10 percent in Transit, part of Europe’s best-selling commercial vehicle line-up, lowering costs for our customers.”

An all-new engine architecture delivers reduced friction and a clean-burning combustion system in the EcoBlue engine. Sophisticated after-treatment processes for exhaust gasses enable ultra-low emissions, according to Ford.

Advanced technologies include an integrated intake system with Ford’s first application of mirror-image porting for optimized engine breathing; a low-inertia turbocharger featuring rocket engine materials designed for high temperature applications; and an all-new high-pressure fuel injection system that is more responsive, quieter and offers more precise fuel delivery, according to Ford.

Developed by Ford engineering teams in the U.K. and Germany, the EcoBlue engine initially will be offered with 105 PS, 130 PS and 170 PS in commercial vehicle applications. Capable of delivering more than 200 PS, the engine will later feature in Ford passenger cars alongside further new EcoBlue engines, including a 1.5-‘liter variant, according to the company.

Low-Friction Combustion

The EcoBlue engine’s clean-sheet design features multiple innovations that reduce friction, contributing to a 13 percent improvement in fuel efficiency, according to Ford, including:

  • A 10 mm offset crank design that minimizes piston side-load, reducing rubbing forces against the cylinder walls of the downsized four-cylinder iron block
  • Minimized crankshaft bearing diameters
  • A belt-in-oil design for the camshaft and oil pump drive belts
  • An optimized valve-train and an all-new single-piece camshaft module

Ford is for the first time using a new mirror-image porting design for the integrated inlet manifold that precisely controls the flow of air into the cylinders, with the clockwise airflow for cylinder numbers one and two, reversed for cylinder numbers three and four.

This symmetrical arrangement ensures uniform mixing of fuel and air in the combustion chambers of all four cylinders, helping engineers more closely control the way the engine burns fuel. When fine-tuning the combustion process, computer experiments used measurements from more than 1,400 factors that affect performance of the valve lift and timing alone.

New fuel injectors are capable of delivering up to six injections per combustion event, with each injection taking as little as 250 microseconds (0.00025 seconds) and delivering 0.8 mg of diesel, equivalent to a grain of sugar. This tiny volume of fuel is injected through eight conical holes each 120 microns in diameter, about the width of a human hair.

Piezoelectric technology that uses electrically-responsive crystals to closely control fuel delivery-typically found in premium passenger-car engines-is incorporated into the body of the injector unit, according to Ford. The new injectors deliver reduced noise levels; minimal energy wastage from the fuel pump; more responsive and less intrusive Auto-Start-Stop performance; and real-time calibration correction for maximum fuel efficiency.

Advanced Turbocharging

The all-new compact turbocharger has been specifically designed to deliver more air at lower engine rpm compared with the outgoing 2.2-liter TDCi engine, for a light and urgent feel across the rev-range and up to 340 Nm of torque at 1,250 rpm, according to Ford.

An aerodynamically advanced turbine wheel-made from Inconel, an alloy used in extreme temperature environments such as rocket engines-is reduced in diameter by almost 10 percent, according to Ford. The aerospace aluminum grade compressor wheel is reduced in diameter by 15 percent. The reductions decrease inertia and enable faster boost performance with wheel speeds up to 240,000 rpm, contributing to improved low-end torque.

“One important factor we noticed through customer feedback is a growing tendency for drivers to ‘creep’ their diesel powered vehicles by engaging the clutch while the engine is at idle, making low-down torque even more essential,” said Paul Turner, base engine technical leader, Ford of Europe.

Compressor wheels are milled from solid, rather than cast, improving tolerances to within two or three microns-around the size of a single bacterium-increasing durability and reducing noise and vibration. A new turbocharger actuator replaces a worm drive with a geared design that halves response times to 110 milliseconds, or the blink of an eye.

The new engine will comfortably meet future emissions requirements supported by Ford’s first standardized selective catalytic reduction system, according to the company. The system is close-coupled to the rear of the engine for maximum efficiency and excellent cold-driving performance. A short-loop exhaust gas recirculation channel is incorporated into the cylinder head, contributing to a more compact engine design and helping optimize cooling of gasses.

Enhanced Refinement

The 2-liter Ford EcoBlue engine will be the first diesel commercial vehicle powertrain from Ford to achieve passenger car noise, vibration and harshness criteria, contributing to enhanced driving appeal, according to the motor vehicle company.

The new engine radiates half as much sound energy at idle as the 2.2-litre TDCi diesel engine. A noise-optimized a cylinder-head, block, stiffening ladder-frame and oil pan are specifically developed to be desensitized to activity inside the engine, and non-flat mating surfaces are carefully designed to offer tight seals that trap noise within the engine.

“The basic structure of an engine can act as a soundboard for the movements happening inside it, just like a bell. So we try to develop a bell that does not ring very well,” said Dominic Evans, NVH specialist, Ford of Europe. “We’ve engineered every significant noise-influencing component of this engine to be quieter and smoother operating – resulting in the most refined diesel commercial vehicles Ford has ever built.”

A moulded acoustic cover that provides foam encapsulation of the cylinder head, and a front cover made from sound deadened steel, further prevent engine noise being transmitted to the cabin for a quieter driving environment. Additional measures taken to enhance NVH, according to Ford, include:

  • Micro-geometry analysis of gear teeth down to a micron level (0.001 mm) to achieve perfect meshing for smoother operation and less high-frequency whine
  • An optimized oil pump featuring unevenly spaced vanes that break up the pump’s noise frequency to make it less perceptible to the listener
  • Advanced fuel injectors featuring integrated piezo-stacks, noise softening software and optimized pilot injection

Vehicle Durability

The EcoBlue engine meets Ford’s demanding global commercial vehicle durability standards for extreme usage in markets as diverse as the U.S., Europe and China.

The engine’s performance has been trialled through the equivalent of 3.4 million miles of durability testing, including 250,000 miles at the hands of real-world customers, comprehensive analysis in laboratories and at Ford vehicle proving grounds, and CAE evaluations at every stage of development, according to Ford.

The oil system-including the oil specification, oil pan and filter dimensions, bore distortion tolerances and piston ring specifications-has been engineered to extend oil life, and maintenance-free components include the camshaft belt, camshaft module, and water pump.
